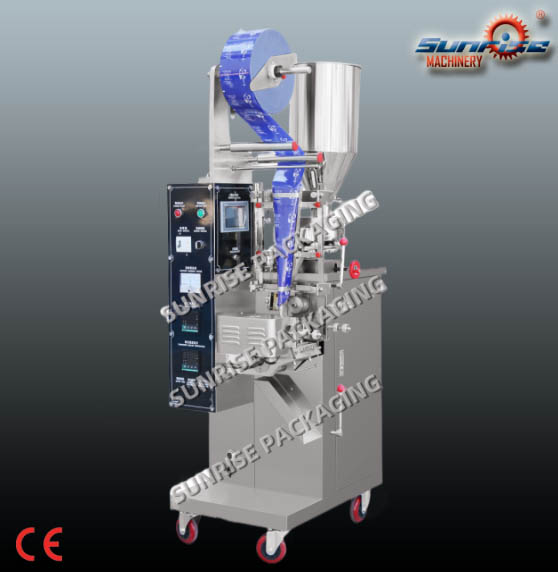

Model SR-FSK-40II/150II



Application

This machine is for packing free flowing, non-sticky, granular materials, such as coffee, sugar, plant seeds, washing powder,  desiccant, etc.

The integrated process of bag making, measuring, filling, sealing, cutting, counting and hot embossing coding can be done automatically.

Packing materials: heat-sealable lamination, such as PET/VMPET/PE, PET/PE, NYLON/PE, etc.




Feature

1. SS304 cover meets GMP standard, this machine also obtains CE certificate.

2. Servo motor driving, Panasonic PLC + Touch screen control, it is convenient to adjust the filling range and bag size .

3. The speed is up to 160 bags/min, twice the speed of intermittent model.

4. Equipped with 6 dosers, speed improving, avoid sticking to the sealing area, product saving, .

5. The high sealing pressure guarantees the sealing area tight and neat.

6. Individual cutter system, sharp, durable and safe. Straight and zigzag cutter are options.

7. Ink roller printer, vacuum conveyor, and no packing film alarm system are options.

Main technical parameters

SR-FSK-40II

                   Bag size

      L:55-110 mm  W:30-80 mm

                  Capacity*

              50-160 bags/min

                Filling range

                     5-40 ml

                    Weight

                      350 kg

           Dimension (L*W*H)

   600 mm x 790 mm x 1780 mm

                      Power

           220 V,50 HZ,1.5 KW


SR-FSK-150II

                    Bag size

     L:70-150 mm  W:70-115 mm

                    Capacity*

             35-60 bags/min

                 Filling range

                  30-150 ml

                     Weight

                    450 kg

           Dimension (L*W*H)

 700 mm x 800 mm x 1900 mm

                      Power

          220 V,50 HZ,1.9 KW



Depending on product property and filling volume
