CTSV-CW1
Application
It is suitable for daily sign-in and temperature detection in places with fixed crowds; access control and attendance at medical care places, streets, communities, parks, office buildings, campuses, and other places.
Feature
Infrared rapid temperature measurement
---accurate body temperature capture, binocular live dynamic face recognition
Large registered storage capacity
---multiple specifications for registered face capacity: 3000/10,000/20,000 persons
Multiple face registration methods
---offline touch screen registration / U disk import/software import/software photo
Access control function
---professional access control function, Wiegand input and output authority control
Attendance function
---support U disk export record report, support background software attendance statistics
Communication method ---TCP / IP, WIFI, U disk
Main technical parameters
| Model | CTSV-CW1 |
Appearance | 5.0-inch capacitive touch screen, touch screen virtual keys |
Technology Platform | Industrial-level LINUX intelligent operating system |
Verification Comparison | Dynamic face recognition verification,password verification,face+password verification, IC card verification |
Operating Memory | 4GBit ddr3, storage capacity 32GBit |
Storage Capacity | Faces: 3,000pcs, IC cards: 3,000pcs, Records:1million |
Communication Method | U disk upload, download data (TCP/IP wired communication, WIFI wireless communication) |
Attendance Report | U disk to export temperature record details and attendance statistics report, computer software collect data through network connection equipment |
Language | Simplified Chinese, English |
FRR | ≦ 0.1% |
FAR | ≦ 0.0001% |
Recognition Mode | 1:1, 1:N |
Matching Speed | The fastest speed 0.2 seconds, pure dynamic face recognition:0.5-3m, start live detection 0.5-1.5m |
Access Control Function | Time period permission control, personnel permission control, holiday permission control, external access control read head, Wiegand 26/34 input 12V/24V |
Power Supply | 12V/24V |
Display Accuracy | Minimum body temperature unit value 0.1℃ |
Thermometry Accuracy | ±0.5℃ |
Thermometry Distance | 0.5-0.6m |
Working Temperature | -20℃-65℃ |
Thermometry Scope | -45℃-85℃ |
Other Parameters | Support name display and built-in ringing |
Work Mode 1 | Register human face first, face temperature measurement, alarm when exceeding the standard used for fixed personnel |
Work Mode 2 | No face registration, face temperature measurement, alarm when exceeding the standard, used in places with no fixed personnel |
Oversize | 350*300*1370mm |
Weight | 18kg |

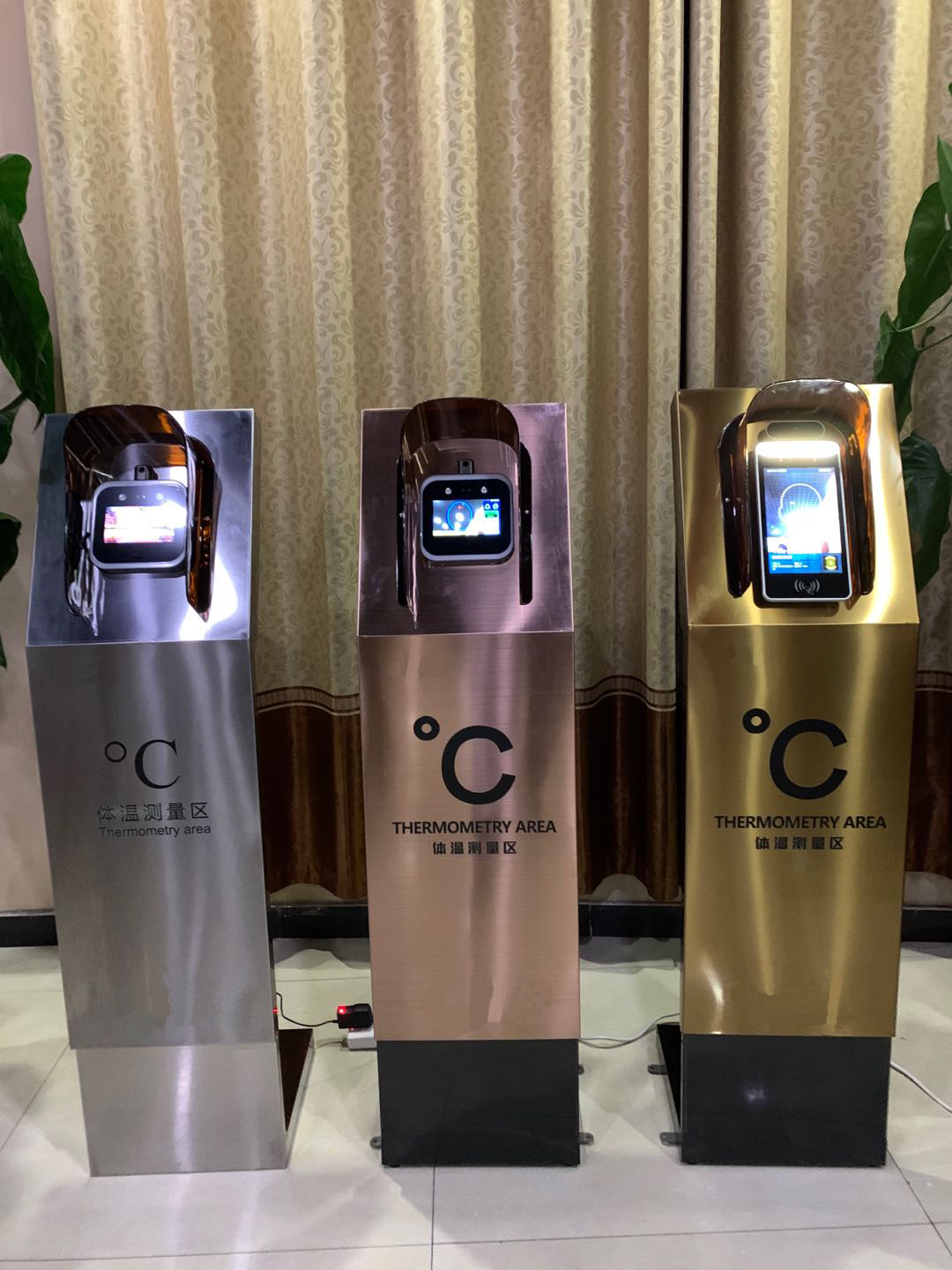

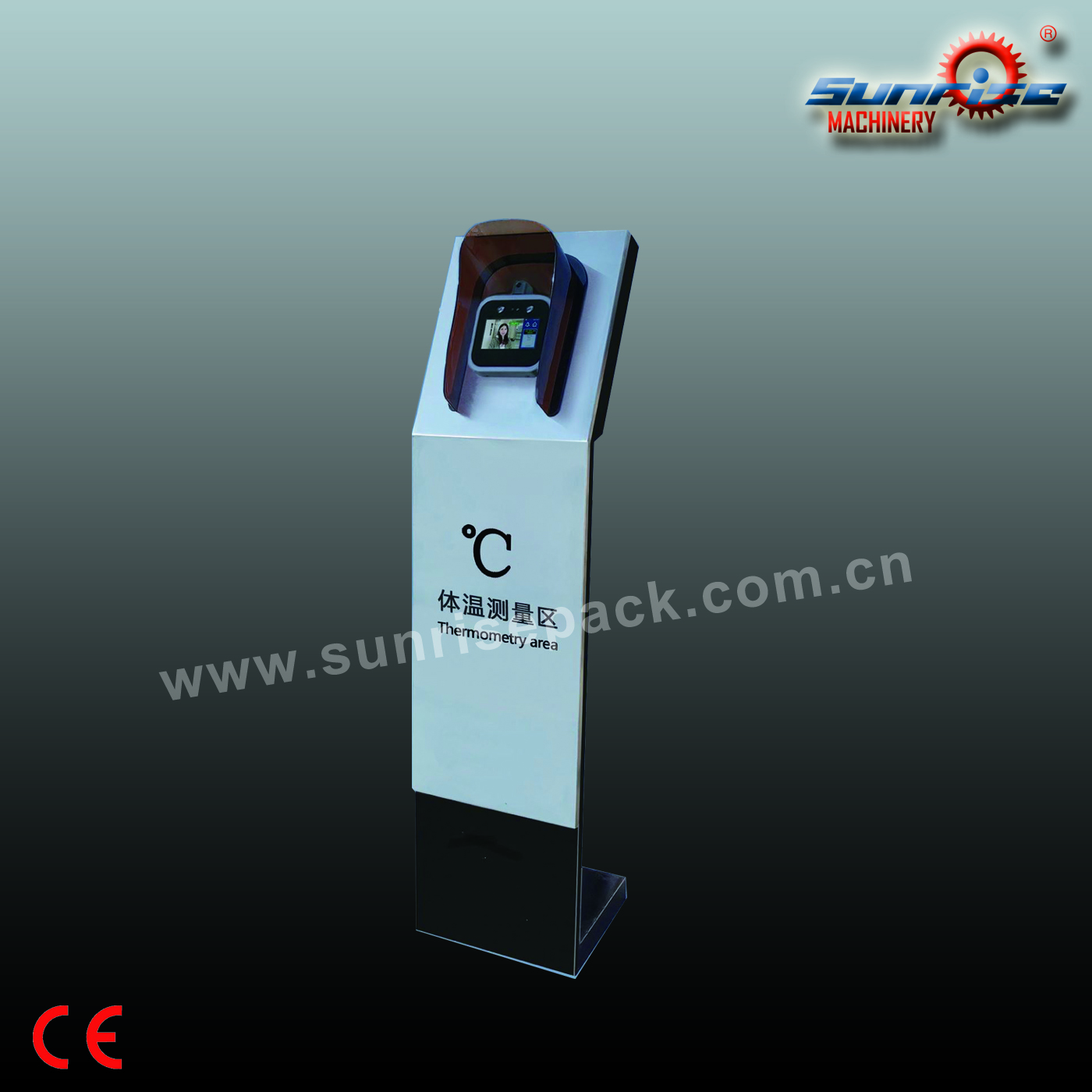

Other Picture
