Model SR-FS-400/500/620/800



Application

This machine is suitable for various free flowing products that need high weighing accuracy, such as chips, dried fruits, dried meat, breakfast cereals, cookies, puffed food, crispy rice, popcorn, pasta, fried snacks, frozen food, etc.

Feature

1. This machine can automatically complete all packaging process: feeding, measuring, bag making, filling, sealing, cutting, counting, etc.

2. Adopts different measuring system according to customers' materials, such as volumetric cups for washing powder, four head scales for beans, 10 heads scales for potato chips, etc.

3. PLC + touch screen control system with human-machine interface, simple and direct-viewing in operation.

4. Professional motion control system and high speed processing system make sure high speed and stable running status.

5. Protective treatment of the product like valve or nitrogen gas flushing system available - protecting the product from unfavorable influence of oxygen.

6. Four heads weigher/ ten heads weigher/ fourteen heads weigher/ twenty heads weigher from famous brands.

Main technical parameters

Model

Type 400

Type 500

Type 620

Type 800

Film width

140-400 mm

180-500 mm

220-620 mm

340-800 mm

Bag width

60-190 mm

80-240 mm

100-300 mm

160-385 mm

Bag lengh

50-230 mm

50-300 mm

50-380 mm

100-480 mm

Capacity

50-100 bags/min

15-60 bags/min

15-60 bags/min

10-30 bags/min

Air consumption

0.2㎥/Min,0.6 MPa

0.36/Min,0.6MPa

0.4/Min,0.6MPa

0.7/Min,0.6MPa

Power supply

220V, 50HZ, 3.5kW

220V, 50HZ, 3kW

220V, 50HZ, 4kW

220V, 50HZ, 4.5kW

Weight

300 Kgs

550 Kgs

680 Kgs

980 Kgs

Dimension

(L*W*H, mm)

1300*960*1150

1550*1160*1480

1600*1260*1680

1600*1500*2050

 Depending on product property and filling volume

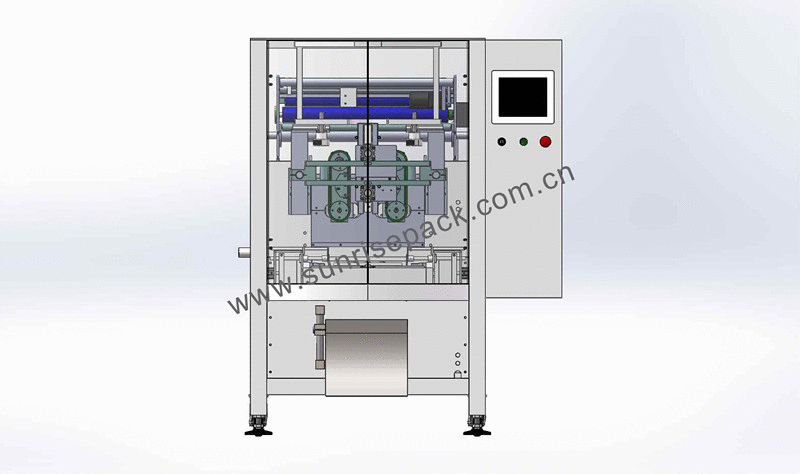

Other Picture




Machine video
