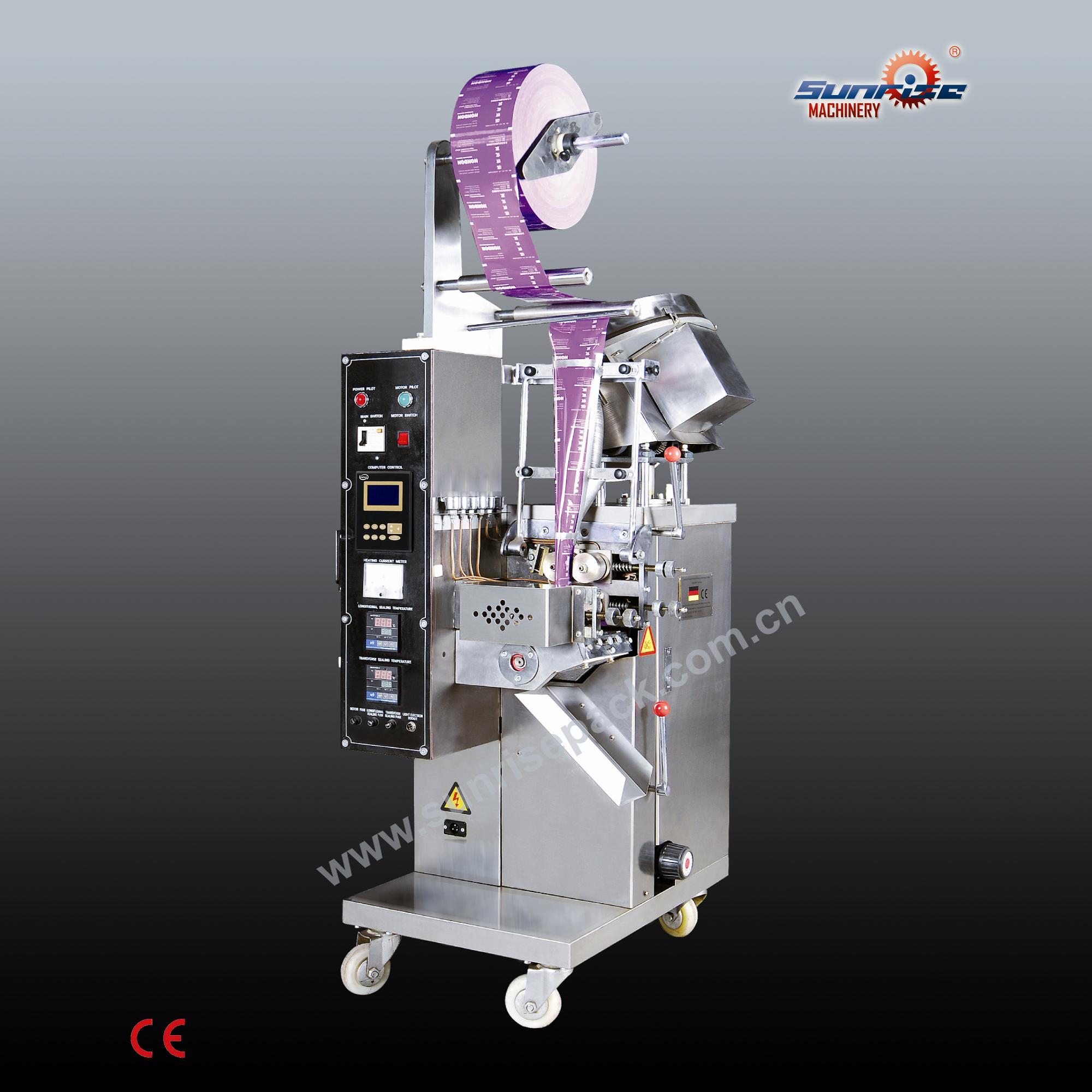

Model-SR-FSP-40II

Application

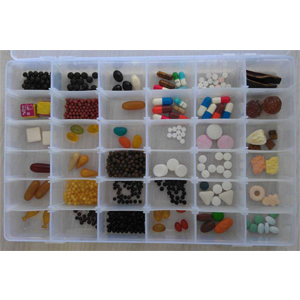

This machine is designed and manufactured specially for tablet and pill products, such as compressed tablet, capsule, water-bindered pills, etc.

The integrated process of bag making, measuring, filling, sealing, cutting, counting and hot pressing codes can be done automatically.

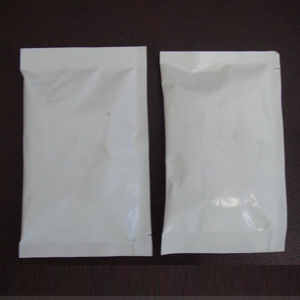

Packing materials: heat-sealable lamination, such as PET/VMPET/PE, PET/PE, NYLON/PE, etc.

Feature

1. All stainless steel SS304 cover, meet GMP standard, obtain CE certificate.

2. Servo motor driving and Panasonic PLC control.

3. Filling range and bag size are adjustable conveniently.

4. According to different material you can choose mesh plate or vibration counting system.

5. Adopte Germany Igus bearing, abrasion-resistance, long life-span.

6. Individual cutter system, sharp, durable and safe. Flat and zigzag cutter are options.

7. Ink roller printer, no packing film alarm system are options.

Main technical parameters

                                Bag size

                (L):55-110 mm (W):30-80 mm

                               Capacity

                           30-50 bags/min

                            Filling range

                                 5-40 ml

                        Dimension(L*W*H)

                 600 mm*790 mm*1780 mm

                                Weight

                                  350 kgs

                                 Power

                         220 V, 50 HZ, 1.5 kW

Depending on your product property and filling volume.
